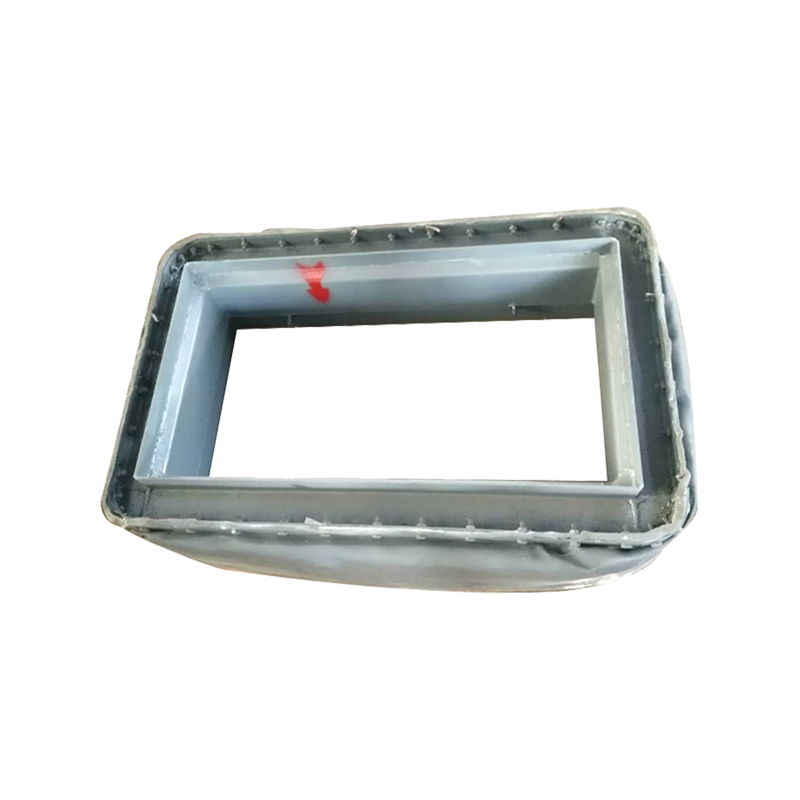

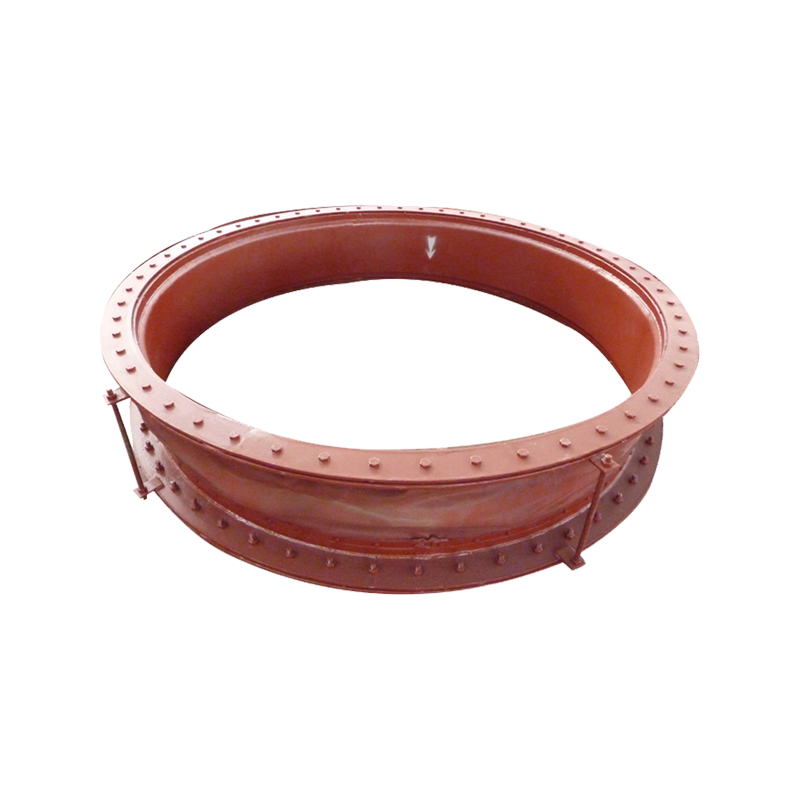

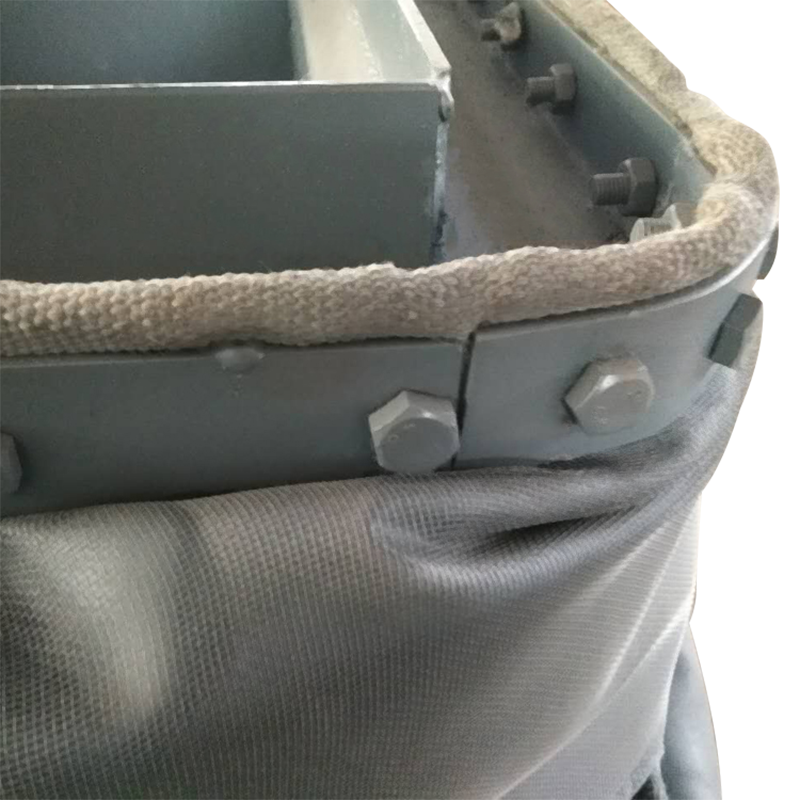

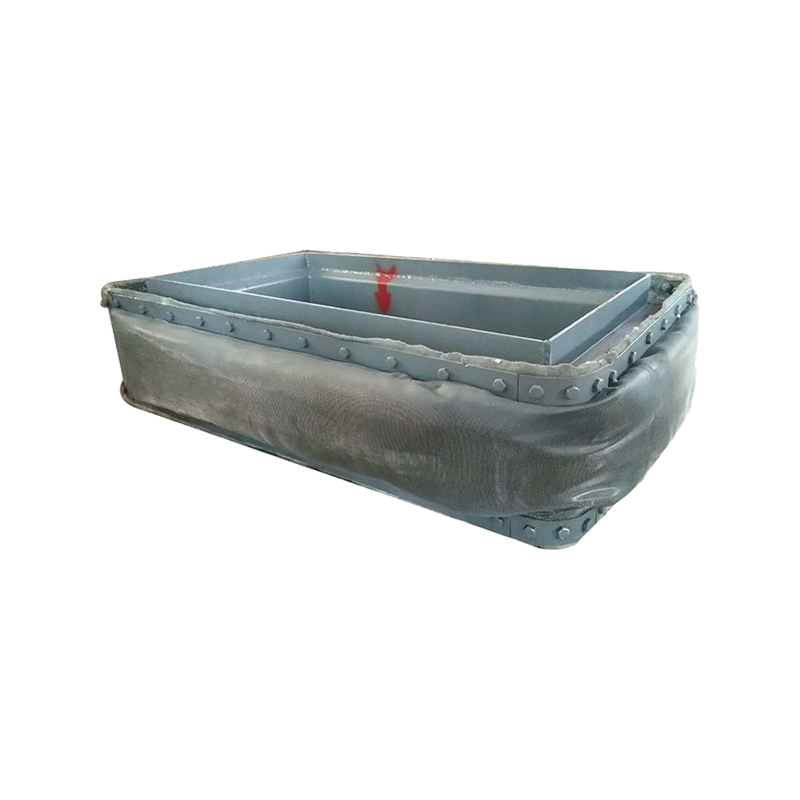

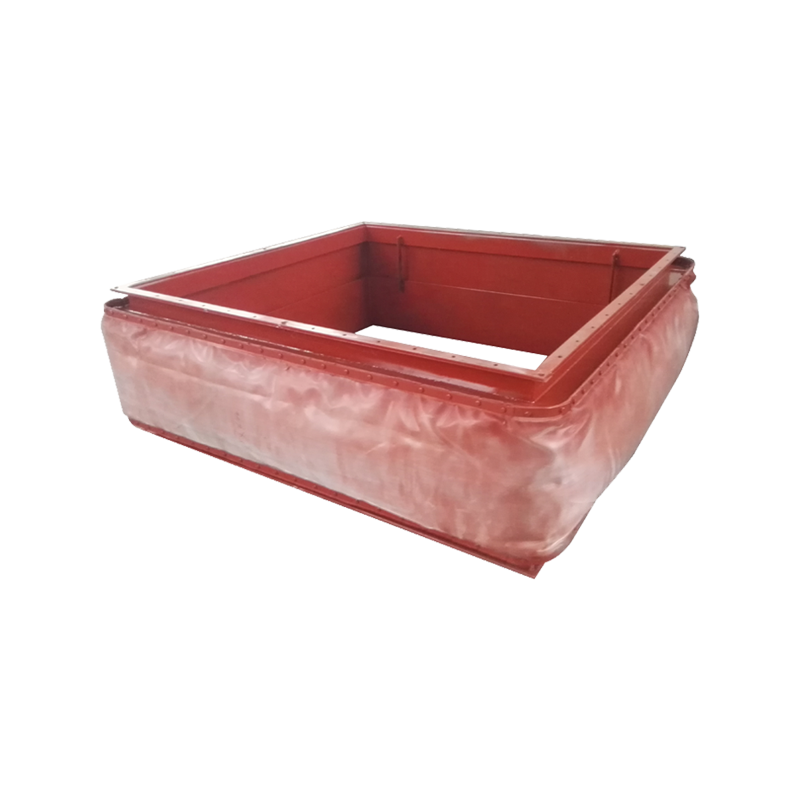

Non-metal compensator

Fiber expansion joint series

1. Product features:
Non-metal expansion joints are outstanding in compensating for thermal expansion and can provide a wide range of multi-dimensional compensation in a smaller size.
Common system errors in pipeline connections can be effectively eliminated by non-metallic compensators, avoiding deviations in installation.
The sound absorption and vibration isolation properties of fiber fabrics and thermal insulation cotton help significantly reduce the noise and vibration generated by the operation of equipment such as boilers and fans.
Because its core material is fiber fabric, the non-metallic compensator transmits less force, is more simplified in design, and does not have the problem of reverse thrust.
The use of fluoroplastics and silicone materials makes it have good high temperature and corrosion resistance, and can adapt to harsh working environments.
Non-metallic expansion joints still maintain sealing performance under the action of different media, and the price is 1/2-1/3 lower than similar imported products.
Its installation and maintenance process is simple, which reduces the cost of use and the difficulty of operation.

2. Application Scope
① Boiler plant;
② Cement plant;
③ Steel plant; Melting furnace, incinerator;
④ Thermal power plant and nuclear power plant;
⑤ Air conditioning system;
⑥ Glass and mineral wool industry;
⑦ Petrochemical enterprise;
⑧ Air and gas cleaning plant;
⑨ Fan plant and all places in the industry with pressure and high flexibility, where expansion joints must be installed.

3. Other services
We can design and manufacture non-metal expansion joints and other products of various specifications according to the special requirements of users (corrosion resistance, high temperature resistance, etc.), repair or replace various damaged and ineffective non-metal expansion joints for users (including replacement and maintenance of imported non-metal expansion joint parts), and provide free technical guidance on the selection and on-site installation of non-metal expansion joints for engineering pipes.

4. Main technical parameters:
Pressure: vacuum ~ 0.1MPa
Temperature: -20℃ ~ 1000C
Round: DN50-DN5000
Rectangle: any cross-section

PTFE expansion joint series
1. PTFE expansion joint series products comply with relevant international and domestic standards, and have reasonable structural design, advanced technology, high standardization level, good versatility and strong interchangeability. They have anti-aging performance, reliable sealing effect and long service life. In addition, this series of products is particularly suitable for highly corrosive and high-pressure pipeline systems, and effectively solves the problems of displacement and installation deviation caused by thermal expansion and contraction.

2. Main technical parameters
General type: DN40 ~ 1000mm
Using pressure: 0.25- 2.5MPa
Using temperature: -50 ~ 150 °C
